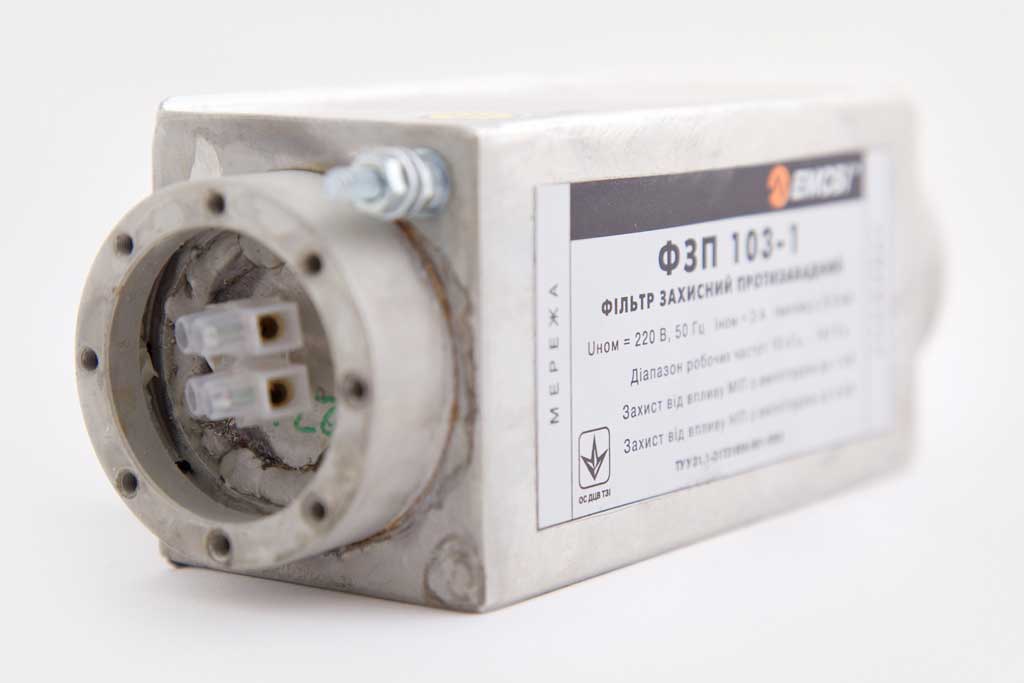

EMSBI’s power line one-phase EMI filters protect information in digital equipment from leakage via power line. They do so in a very broad frequency band – from 10 kHz to18 GHz.

At the same time, EMI filters FZP 103-1 protect mentioned equipment from “polluted” power line and from high voltage surges of up to 10…50 microseconds long, as well as from packets of high voltage impulse interference of nanosecond range caused by natural (e.g. lightning strikes) or artificial (electromagnetic terrorism) factors.

Thanks to small leakage current (within 3…3,5 mA) EMI filters FZP103-1 are secure in use even even in the absence or breakdown of earthing.

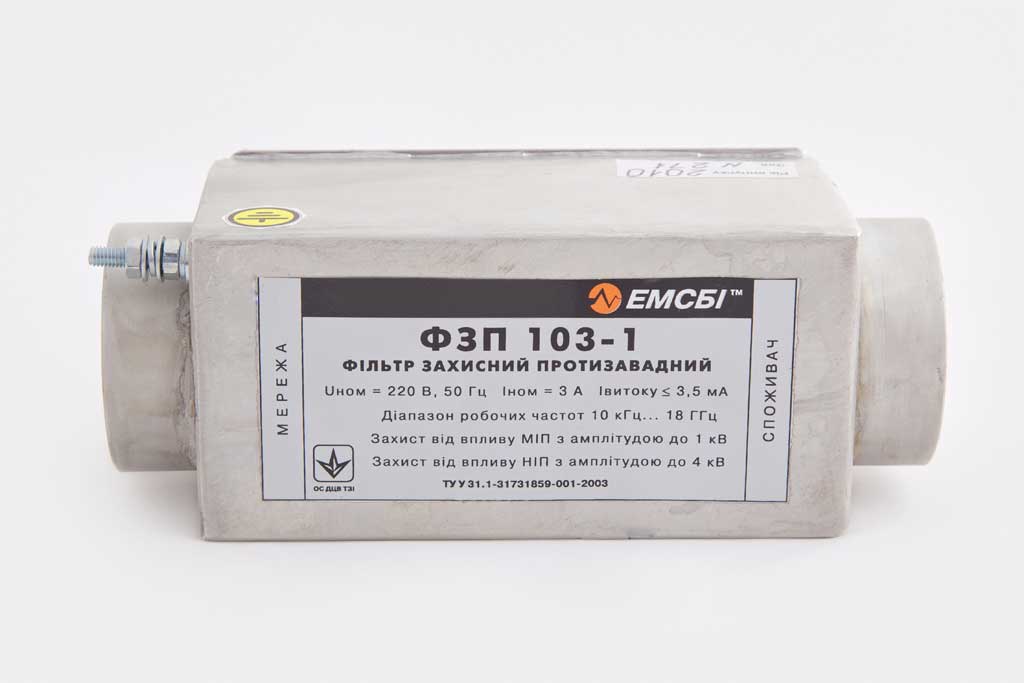

Basic specifications of EMSBI filter 103-1 type:

rated operation voltage:	220 V AC 50 Hz;
consumer’s rated current:	3A
leakage current, not more:	3,5mA
protected frequency band:	10kHz … 18GHz

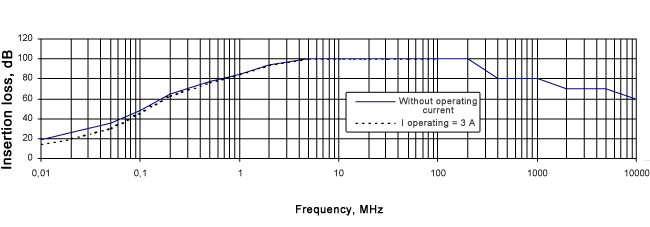

insertion loss, not less, asymmetric measurement scheme:	see diagram
amplitude of microsecond high energy impulse interference on the “Power line” clamps, given its effective absorption by the filter:	up to 1000 V
amplitude of a pack of nanosecond impulse interference on the “Power line” clamps, given its effective absorption by the filter:	up to 1000 V
mass, not more:	1,5 kg;

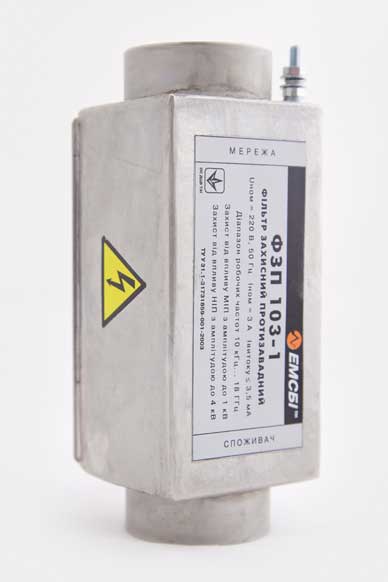

dimensions, not more:	205 х 64 х 53 mm;
warranty period:	3 years
full specified service life:	not less than 15 years

Diagrams:

Delivery set

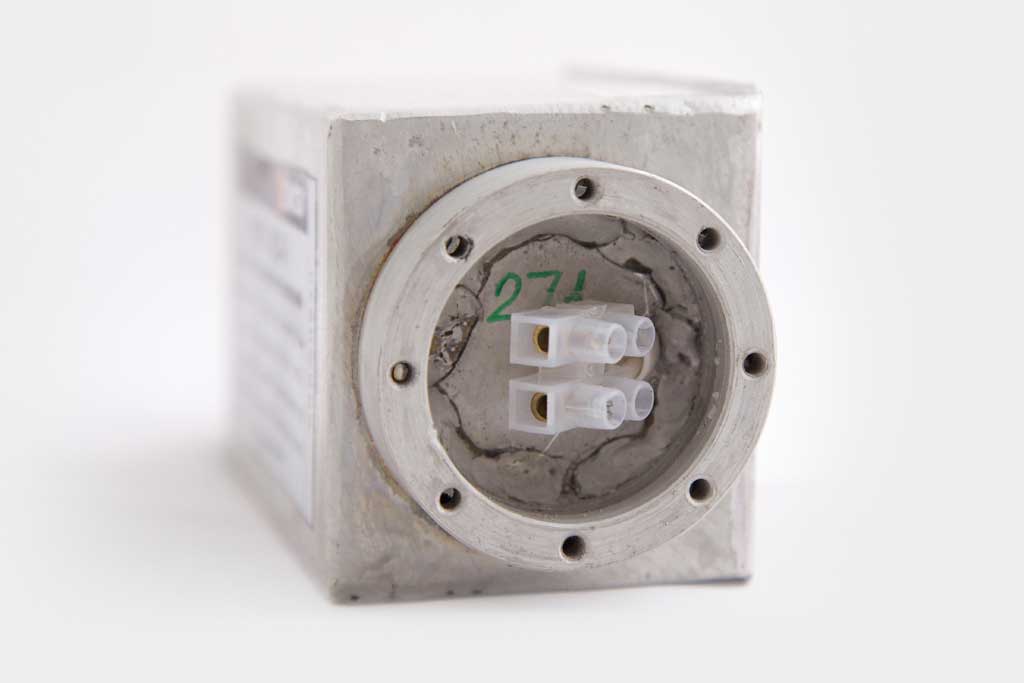

Delivery set comprises EMI filter FZP 103-1, service manual, two membranes for unsoldering power supply cable shields, two hoops and screws for every membrane.
Extended delivery set comprises:

– EMI filter FZP 103-1;

– service manual;

– shielded cable for connecting the filter to power line 220 V 50 Hz;

– shielded cable for connecting the filter to the consumer;

– cramps (2 items) for filter fastening
