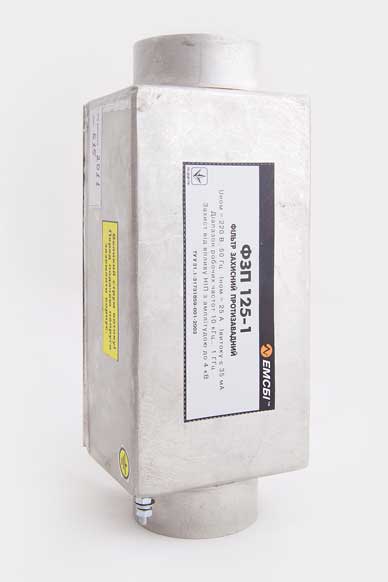

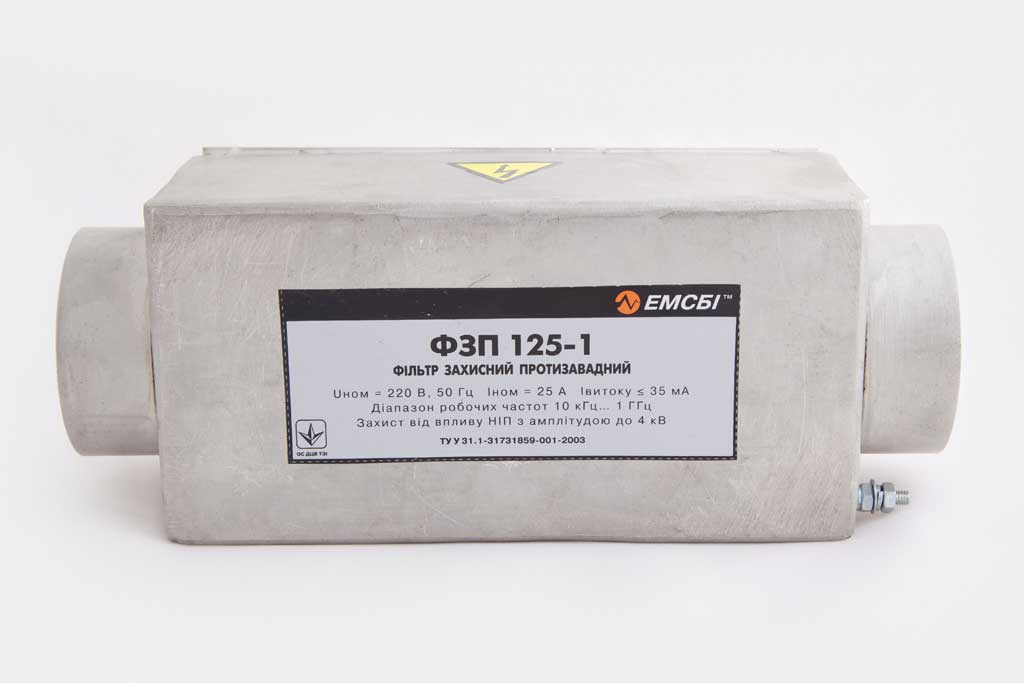

EMSBI’s power line one-phase EMI filters FZP 125-1 protect information in digital equipment from leakage via power line.

They do so in a very broad frequency band – from 10 kHz to18 GHz.

At the same time EMI filters FZP 125-1 protect mentioned equipment from “polluted” power line and from packets of high voltage impulse interference of nanosecond range caused by natural (e.g. lightning strikes) or artificial (electromagnetic terrorism) factors.

Thanks to small leakage current EMI filters 125-1 do not trigger protective differential relays when supplying voltage to the filter or during power switching.

Basic specifications of EMSBI filter 125-1 type:

rated operation voltage:	220 V AC 50 Hz;
consumer’s rated current:	25 A
leakage current, not more:	35 mА
current overload capability of the filter:	*2I rated during 0.5 min., 3I rated during 10 sec.*
protected frequency band:	10 kHz…18 GHz
insertion loss, not less, having asymmetric network of measuring:	see diagrams
amplitude of a pack of nanosecond impulse interference on the “Power line” clamps, given its effective absorption by the filter:	up to 4000 V
mass, not more:	2,2 kg
dimensions, not more:	220 mm х 90 mm х 67 mm
warranty period:	3 years
full specified service life:	not less than 15 years

Diagrams:

Delivery set

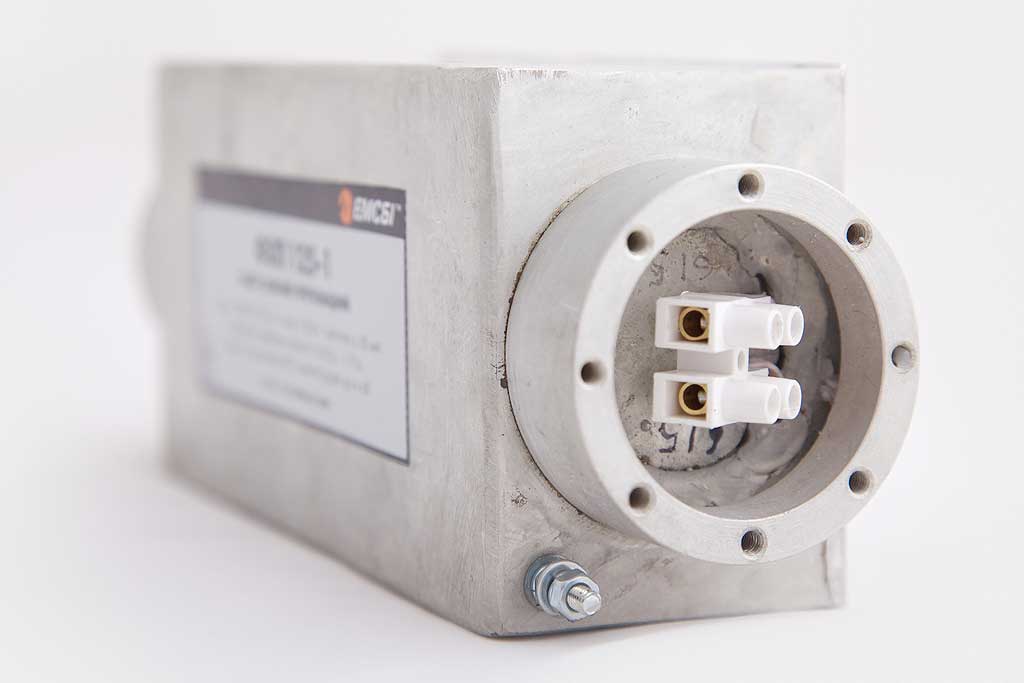

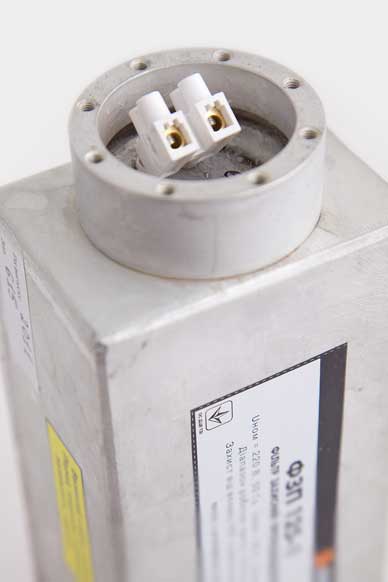

Delivery set comprises EMI filter FZP 125-1, service manual, two membranes for unsoldering power supply cable shields, two hoops and screws for every membrane.

Enlarged delivery set comprises:

– EMI filter FZP 125-1;

– service manual;

– shielded cable for connecting the filter to power line 220 V 50 Hz;

– shielded cable for connecting the filter to the consumer;

– cramps (2 items) for filter fastening
