EMI filters FZP-110-3

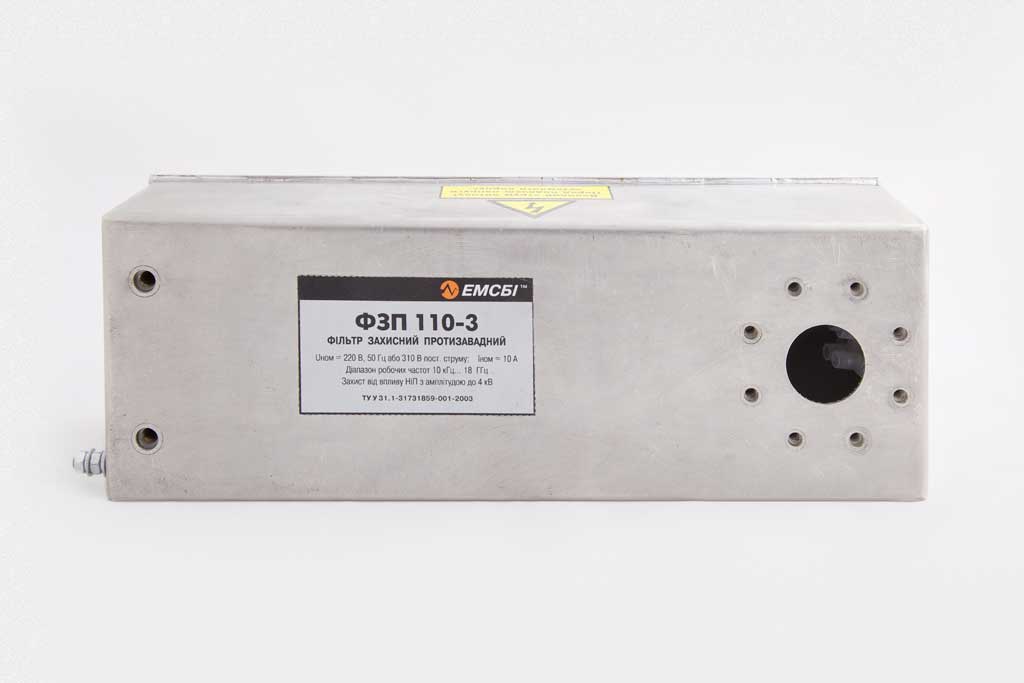

  • img_2404

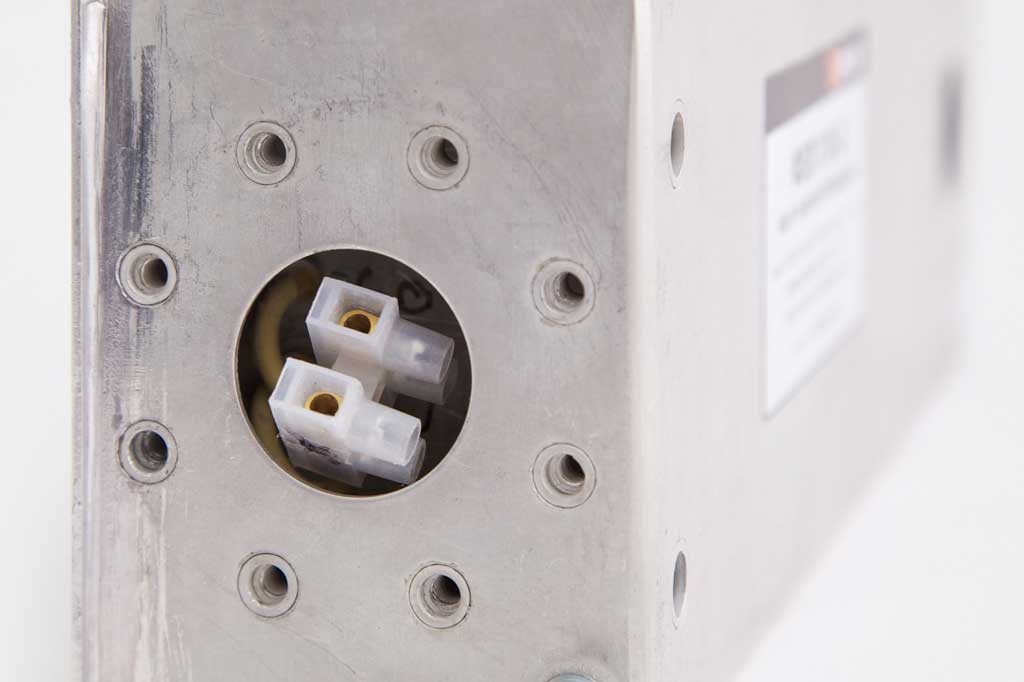

  • img_2441

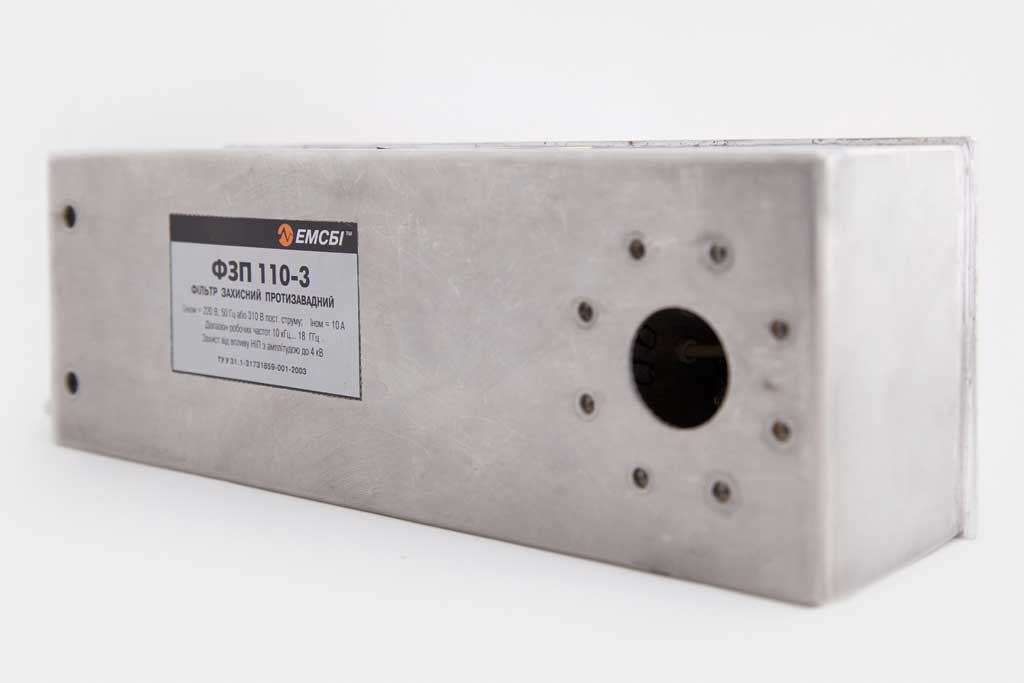

  • img_2443

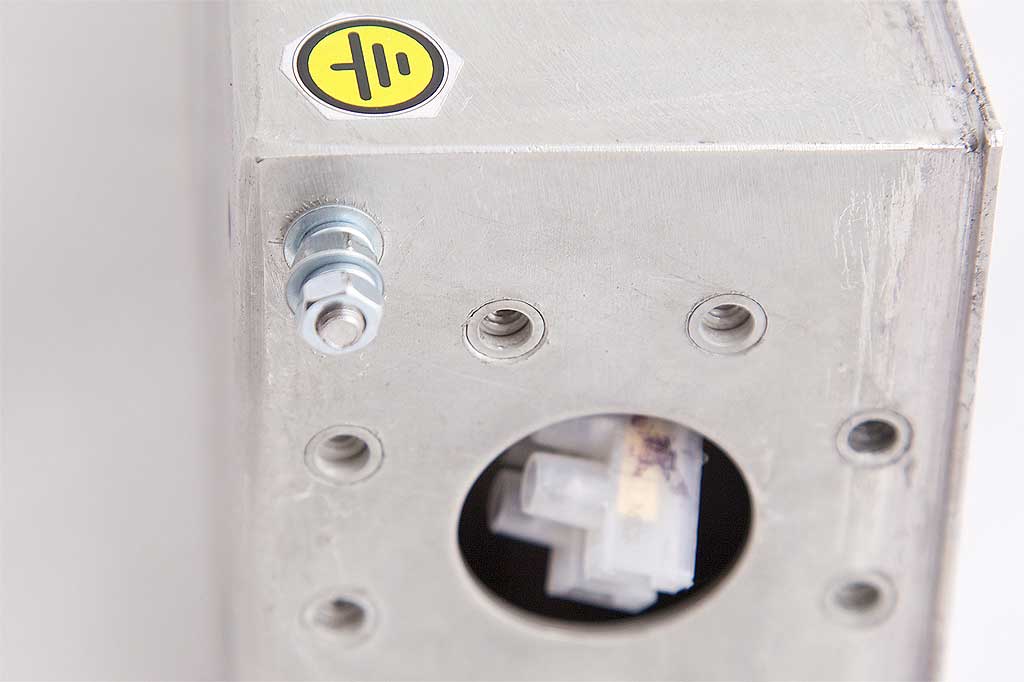

  • img_2447
EMI filters FZP-110-3:
+
Basic specifications of EMSBI filter 110-3 type:
+
rated operation voltage: 220 V AC 50 Hz;
consumer’s rated current: 10 A
leakage current, not more: 15 mA
current overload capability of the filter: 2* rated current during 1 min., 3* rated current during 1 sec.
protected frequency band: 10 kHz…18 GHz
insertion loss, not less, asymmetric measurement scheme: see diagrams
amplitude of a pack of nanosecond impulse interference on the “Power line” clamps, given its effective absorption by the filter: up to 4000 V
mass, not more: 2,2 kg
dimensions, not more: 220 mm х 90 mm х 67 mm
warranty period: 3 years
full specified service life: not less than 15 years
Diagrams:
+
EMI filters FZP-110-3 diagram
Delivery set
+

Delivery set comprises EMI filter 110-3, service manual, two membranes for unsoldering power supply cable shields, two hoops and screws for every membrane.

Enlarged delivery set comprises:

– EMI filter 110-3;

– service manual;

– shielded cable with input in the filter for connecting to electric network 220 V 50 Hz;

– shielded cable with input in the filter for connecting to consumer;

– cramps (2 items) for filter fastening
