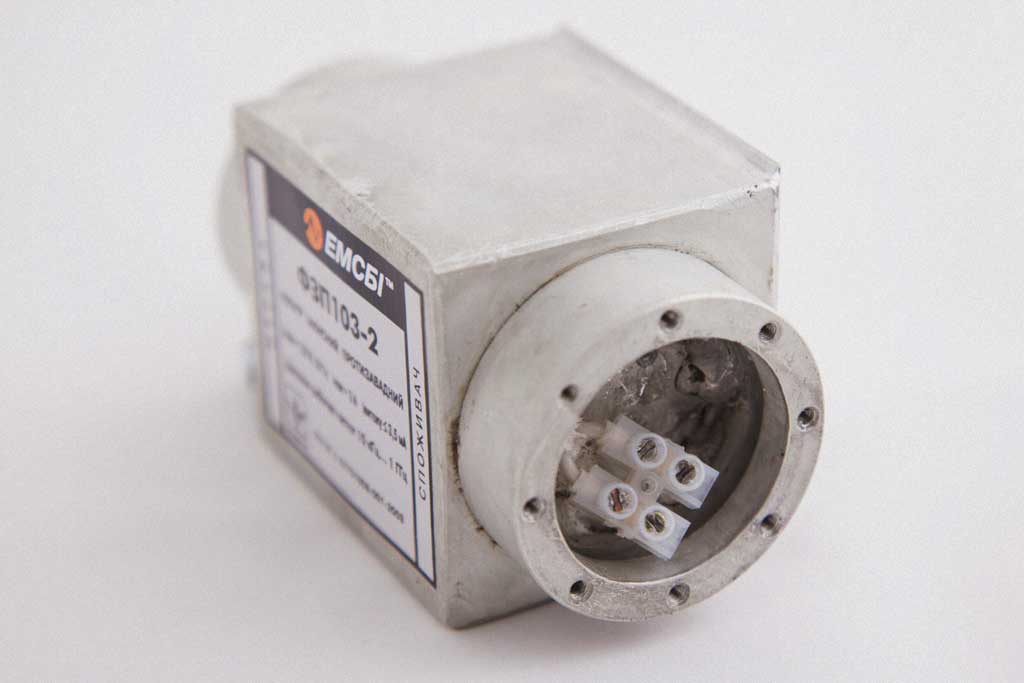

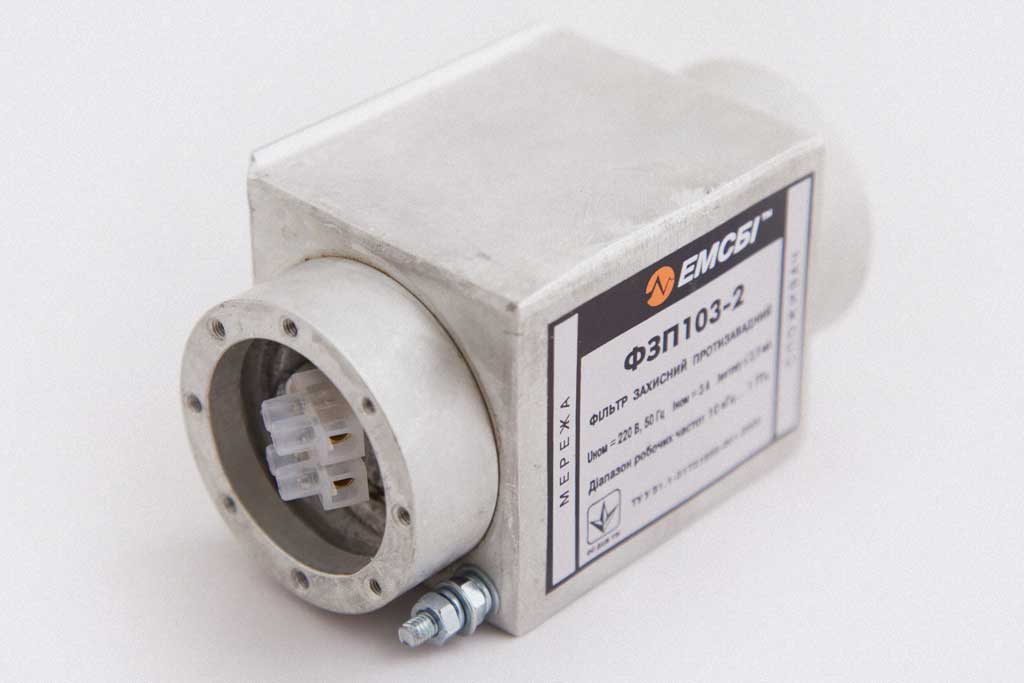

EMSBI’s power line one-phase EMI filters protect information in digital equipment from leakage via power line. They do so in a very broad frequency band – from 10 kHz to 18 GHz.

Thanks to small leakage current (within 3…3,5 mA) EMI filters FZP103-2 are secure in use even even in the absence or breakdown of earthing.

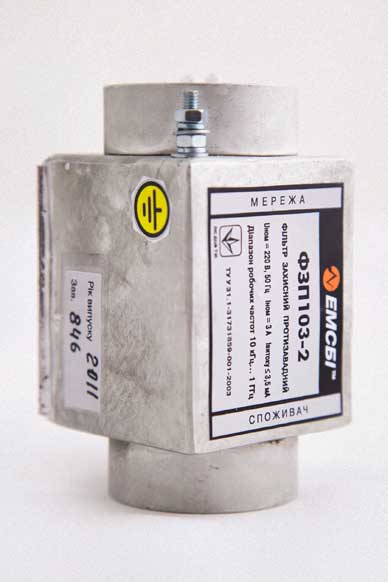

EMSBI’s filters FZP 103-2 are notable for their reduced size (this filter takes dimension 0,42 dm3 only) and small mass (not more than 0,85 kg).

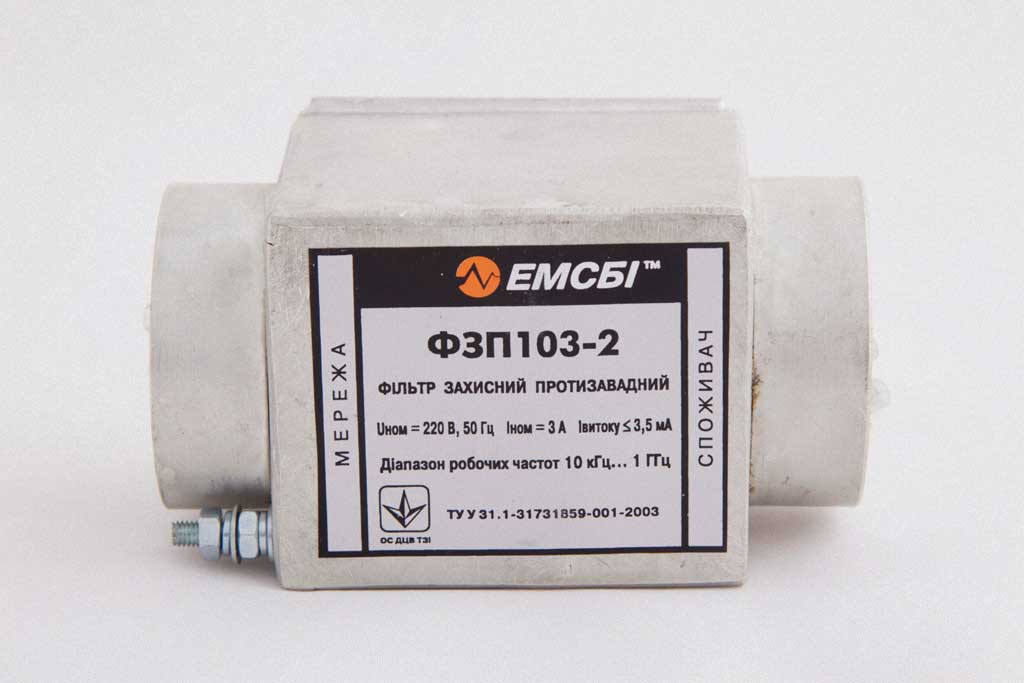

Basic specifications of EMSBI filter 103-2 type:

rated operation voltage:	220 V AC 50 Hz;
consumer’s rated current:	3 A
leakage current, not more:	3,5 mA
protected frequency band:	10 kHz…18 GHz

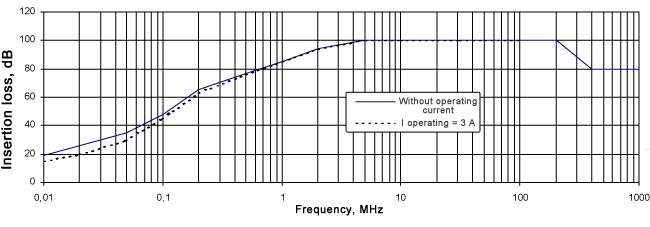

insertion loss, not less, asymmetric measurement scheme:	see Diagram
amplitude of a pack of nanosecond impulse interference on the “Power line” clamps, given its effective absorption by the filter:	up to 1000 V
mass, not more:	0,85 kg
dimensions, not more:	125 х 60 х 56 mm
warranty period:	3 years
full specified service life:	not less than 15 years

Diagrams:

Delivery set

Delivery set comprises EMI filter FZP 103-2, service manual, two membranes for unsoldering power supply cable shields, two hoops and screws for every membrane.

Extended delivery set comprises:

– EMI filter FZP 103-2;

– service manual;

– shielded cable for connecting the filter to power line 220 V 50 Hz;

– shielded cable for connecting the filter to the consumer;

– cramps (2 items) for filter fastening
